Configuring a RAG

A RAG deployment grounds model answers in your own documents. Once it's deployed, you configure it from its page in the portal — which models it uses and who can access it. Its vector database is provisioned and managed for you; there's nothing to set up there.

(For the document, retrieval, and chat APIs, see RAG; for programmatic access, see API Keys.)

Description​

Agents and models read the RAG's description to decide when to search this knowledge base, so it should name the domain it covers and what is in it — for example: "Scientific knowledge base containing eleven papers on efficient large language model inference." Set it when you create the RAG, or later with Edit description at the top of the RAG's page.

Models​

Under Settings, choose the models the RAG uses. Each can be any model on the platform — in-cluster or external:

  • Embedding model — required; turns documents and queries into vectors.
  • Completion model — optional; generates answers from retrieved context.
  • Reranker model — optional; reorders retrieved chunks for relevance.
  • OCR model — optional; reads text from images and scanned PDFs. Only models explicitly typed OCR can be selected (currently dots.OCR).

A model only works while it is running. A stopped model is still listed so you can see it exists, but it is marked (stopped) and cannot be selected — start it from the Models page first, then pick it here. External models are always available.

When you create a RAG, each model is filled in from the platform default. A field is left empty instead when its platform default is no longer usable for that role — the model was deleted, is not available to you, is not of the role's type (only the OCR model field checks the type), or is stopped — and you can choose a model yourself. If every model listed for a required role is stopped, the form says so, and Create stays disabled until an embedding model is running.

On an existing RAG, a model that has stopped since it was configured stays selected but is marked (stopped). Start it again from the Models page, or pick another model — a stopped model fails queries that reach it.

Behavior​

Also under Settings, tune how the RAG retrieves and handles documents:

  • Smart temporal search — time-aware queries ("latest policy", "what changed last month") automatically prioritize the most time-relevant documents.
  • Require group for retrieval — only return results when the query names a document group, keeping every query scoped to a group.
  • Use PDF OCR by default — run OCR on PDFs and images at upload (requires an OCR model).
  • Auto-delete files without a group — discard any uploaded file not assigned to a group.
  • Reranker top N — how many retrieved chunks the reranker considers.
  • Reranker batch size — how many chunks the reranker scores at once.

The defaults suit most deployments; adjust these only for specific needs.

Data sources​

A data source connects the RAG to a store where you already keep your files. The RAG reads the files, indexes them, and reads the store again later to pick up changes.

Portal​

Open the RAG's Files tab and select Add source.

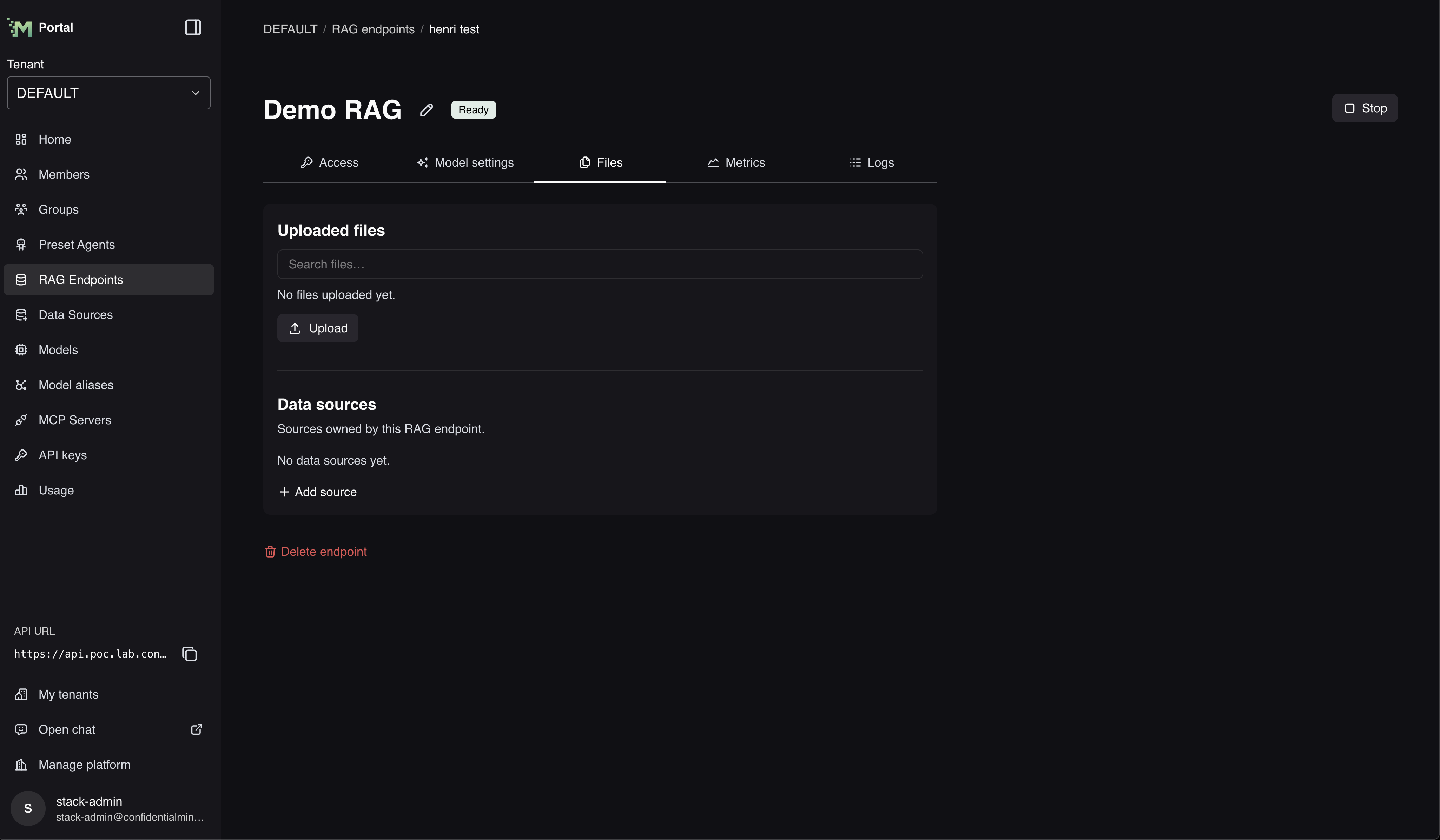

Portal RAG files and sources

Choose the Provider first — the fields under it change with your choice:

  • S3 — Endpoint, Region, Bucket, Access key ID, and Secret access key.
  • Azure Blob Storage — Connection string and Container. The account endpoint is taken from the connection string, so you do not type it.
  • SMB file share — Server, Share, Port, Require SMB encryption, Username, Password, and Domain. The domain is optional; leave it blank for an account that exists only on the file server.

Every provider also asks for:

  • Name — how the source is listed in the portal.
  • Prefix — optional. Read only the files whose name starts with this text. Leave it empty to read the whole bucket, container, or share.
  • Sync interval — how often the RAG reads the store again. Choose Manual, 10 minutes, 1 hour, 1 day, 7 days, or a custom interval of at least 10 minutes.

Once the source is added, select it in the list to see its settings. An S3 source shows its Endpoint and Bucket; an Azure source shows its Account endpoint and Container.

Legacy portal​

Open RAG endpoints in the sidebar and select your RAG. Its page has a Data sources card that lists the sources connected to it:

  • Name — the name you gave the source.
  • Type — S3 or Azure.
  • Status — Pending, Queued, Syncing, Synced, Synced with errors, Sync failed, or Cancelled. A source shows Preparing until its first status arrives. A disconnected source shows Deleted, and Deleting files while the RAG removes its files.
  • Files — how many files are uploaded, how many failed, and how many are still pending. The last error of the source is shown here too. A disconnected source shows how many of its files are still in the RAG as N retained, and as N remaining while the RAG removes them.
  • Last sync — when the source last finished reading the store.
  • Actions — View files opens the file list for that one source. The bin button removes the source. Neither button is shown while the row reads Deleting files, because there is nothing left to do until the removal ends.

The table keeps itself up to date. Select the refresh button next to the Data sources title to update it right away.

Select Add data source to connect a new one. Fill in:

  • Name — how the source is listed in the legacy portal.
  • Type — S3 or Azure. The fields under it change with your choice.
  • For S3 — Endpoint, Region, Bucket, Access key ID, and Secret access key.
  • For Azure — Connection string and Container.
  • Prefix — optional. Read only the files whose name starts with this text. Leave it empty to read the whole bucket or container.
  • Sync interval — how often the RAG reads the store again. Choose Manual, 10 minutes, 1 hour, 1 day, 7 days, or a custom interval of at least 10 minutes. Manual sources sync only when a sync is started for them — see RAG Endpoint.

Select Create to add the source. You need admin access on the RAG; without it the form answers Permission denied. Admin access required.

Removing a source takes two steps. Select the bin button on a source to delete its credentials and disconnect it. The files it already uploaded stay in the RAG, and the source stays in the table marked Deleted. Select the bin button again on that row to ask the RAG to remove those files. This cannot be undone. The row then shows Deleting files while the RAG removes them in the background. It leaves the table once every file is gone. You can close the page while that happens.

File Management on the Data sources card opens the files of the RAG in three tabs:

  • Upload Files — add files from your computer.
  • Manage Files — search, sort, and delete indexed files. The list at the top of the tab chooses what you see: All files, Manually uploaded files, or one data source.
  • Failed Files — choose a data source to see the files it could not index. Each row gives the file, its Error Code, and its Error Message. Select Load more to fetch more rows.

The Failed Files tab appears only for a RAG that has data sources.

The Data sources page in the sidebar is now titled Legacy data sources. Sources connected there before this release stay listed and keep working, but new ones can no longer be created — the Connect data source button is gone. Connect new sources from the Data sources card of a RAG instead.

(To follow a sync, or start one from your own code, see RAG Endpoint.)

Access​

Portal​

Open the RAG's Users tab. It has two sections:

  • Administrators — edit, start, stop and delete the endpoint, and manage its data sources.
  • Viewers — read the endpoint's configuration and data sources, without changing anything.

Select Add administrator or Add viewer, search by name or email, tick the users and groups you want, then select Add. Each row has a remove button. See Access to one resource for the full steps.

The RAG's Access tab holds its API URL and the calling examples.

Legacy portal​

Under Users, add people and groups as either users or admins:

  • User — use the RAG.
  • Admin — also manage the deployment and who can access it.

Granting a group access gives every member that access — the simplest way to manage a whole team at once. For programmatic access, issue an API key with read and/or write on the RAG.

Updates​

A RAG keeps itself on the platform's recommended version automatically — nothing to do to stay current.
